Wobbler systems

Reversing operation of the shafts forwards and backward

for optimal cleaning of the Product

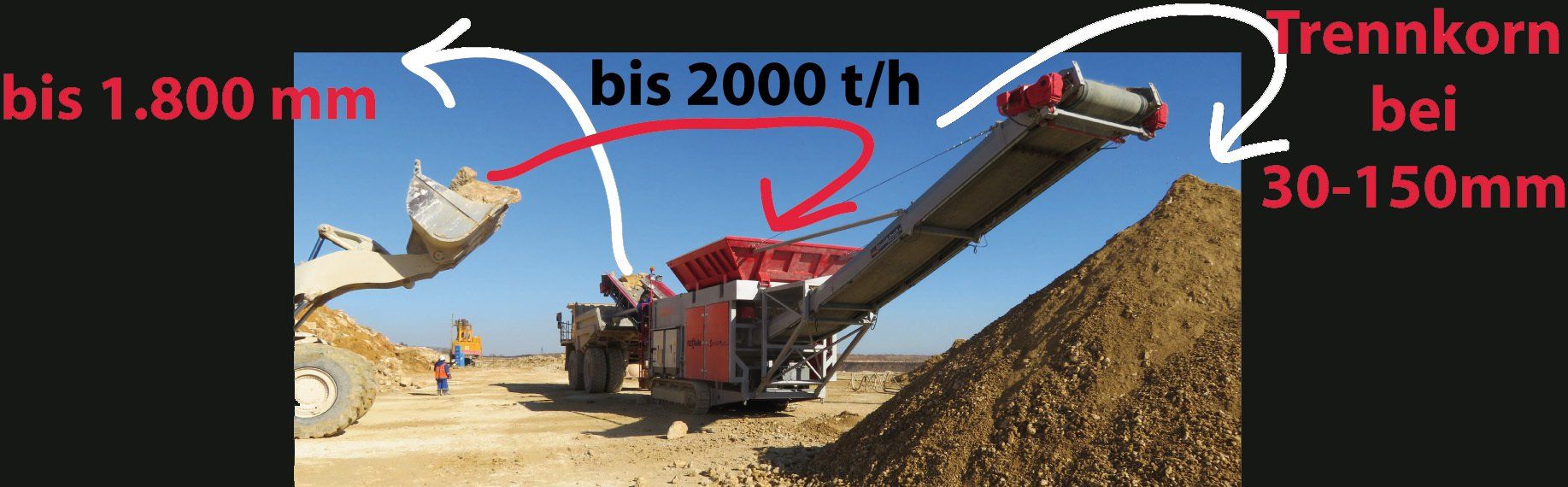

here: track mounted FlexRoRo 12-4-24

Wobbler Width: 1.200 mm, 4 Stages with 24 shafts

Feeding size upp to 1.400 mm Guaranteed Throughput: 1.000 t/h

- Reversible mode for rotation of the shafts forwards and

   backwards -> better cleaning of stones

- Duration can be set individually

- 5 programs saved - individually for each customer

- Changeover in the event of overload (utilization of

   max. torque)

- Starting also full loaded (with filled hopper)

Separation and Cleaning:

Large rock of fine material and cohesive, sticky, clay-containing impurities and caking.

- Each stage is individually electrically driven

- Reversible forwards - backwards

- 5 programs freely adjustable to each customer

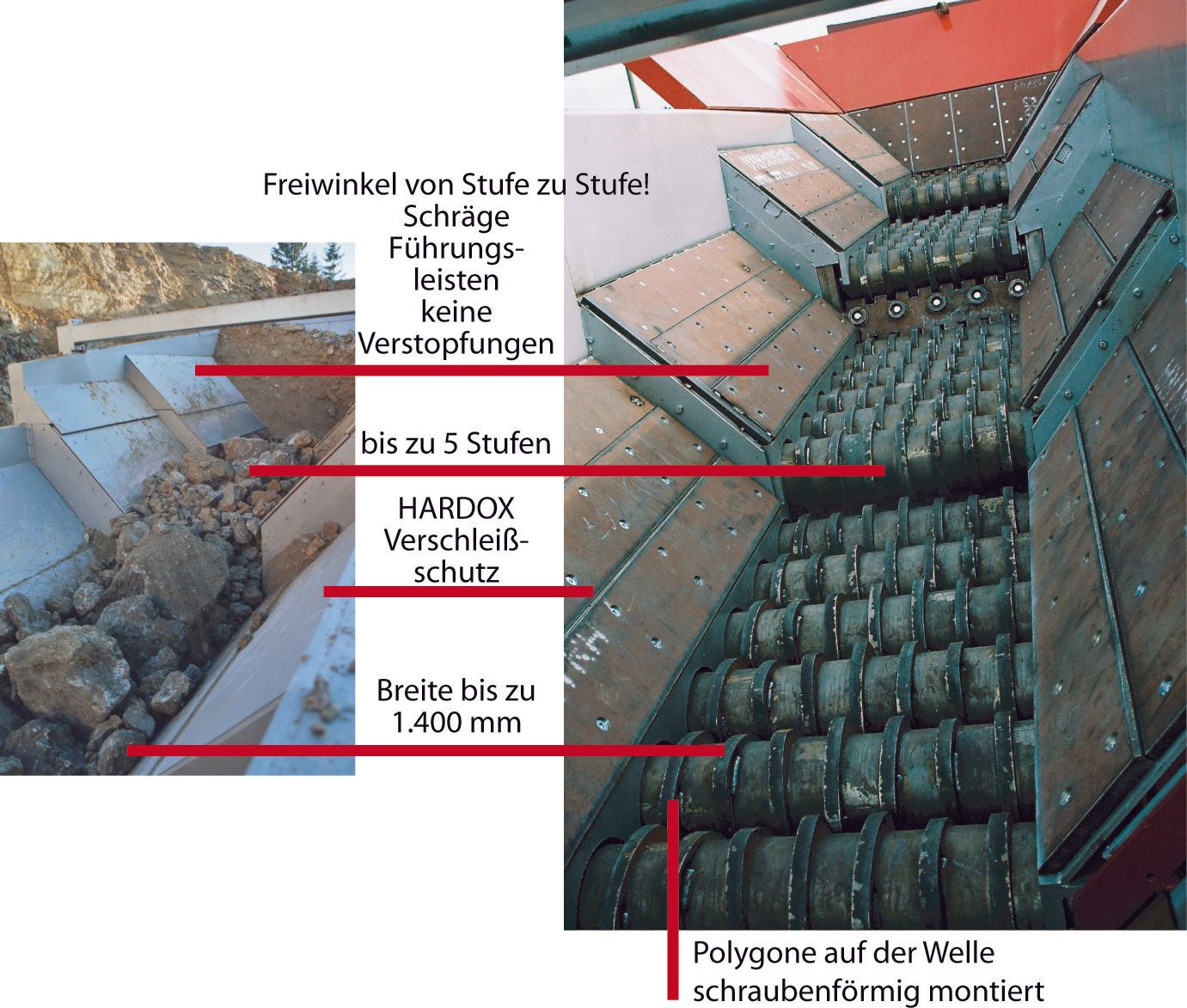

Describtion of the picture below:

- Free angle from step to step, inclined ledges so no blockages

- Up to 5 Steps

- HARDOX wear protection

- Width up to 1.400 mm

- Polygons mounted helically on the shaft

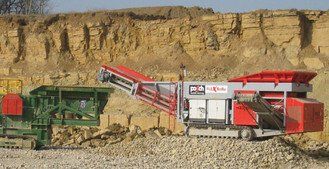

FlexRoRo 8-4-24 track mounted

800 mm RoRo width max. Inputsize: 1,200 mm

4 steps, 24 shafts

Output approx .: 600 t / h separating grain here 60 mm

RoRo 12-1-10 fine - stationary

1,200 mm RoRo width

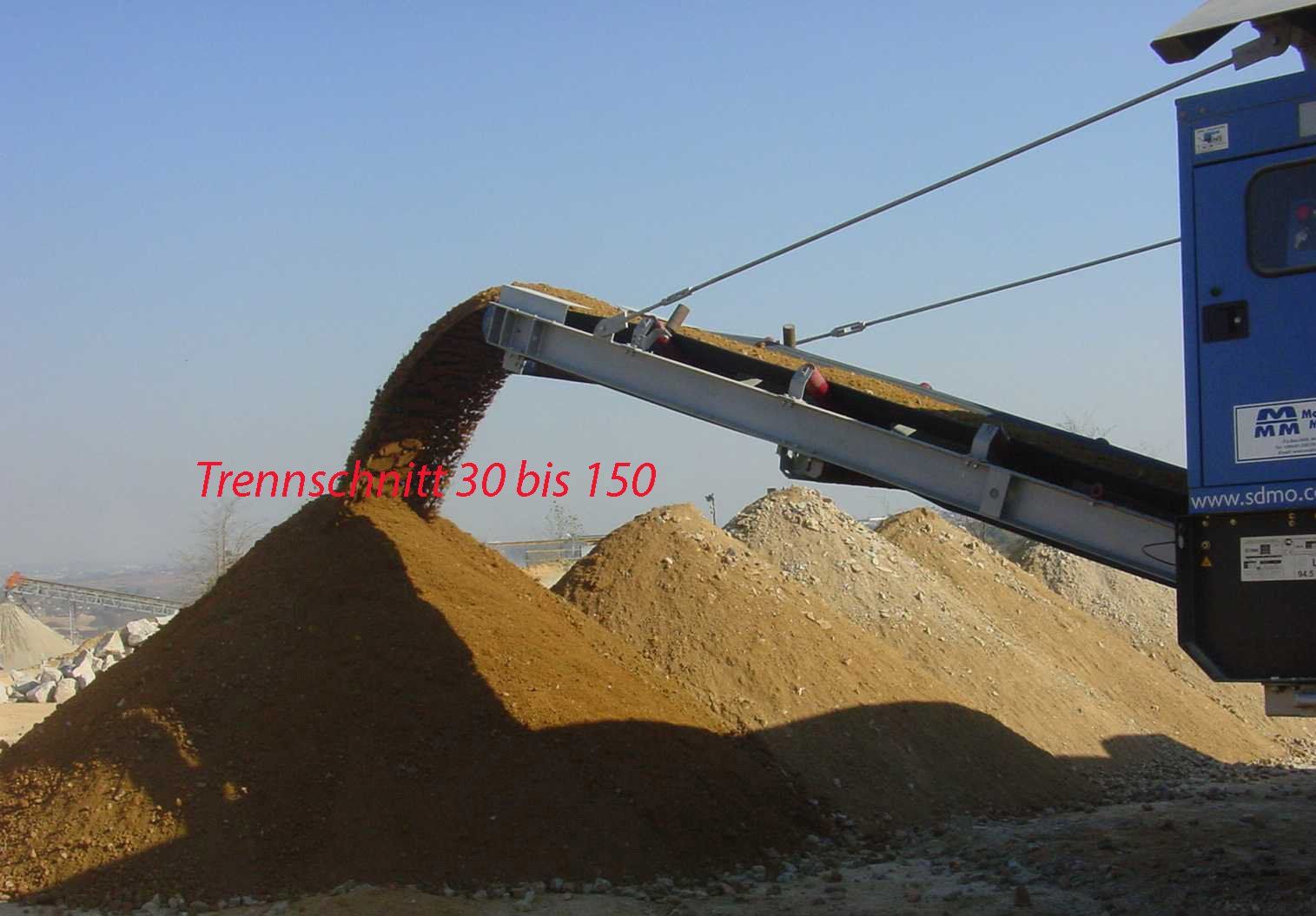

Separating grain here: 35 mm

Optional: Infinitely adjustable separating grain

FlexRoRo 8-2-16 track mounted

800 mm RoRo width max. Inputsize: 1,200 mm

2 steps, 16 shafts

Output: 400 t / h

FlexRoRo 8-4-24 track mounted

800 mm RoRo width max. Inputsize: 1,200 mm

4 steps, 24 shafts

Output: 600 t / h

FlexRoRo 8-4-24 V15 S180 ° track mounted

Discharge belt can be swiveled 180 °

800 mm RoRo width max. Inputsize: 1,200 mm

4 steps, 24 shafts

Output: 600 t / h

FlexRoRo 10-4-24 track mounted

Here: loading with Liebherr excavator 984, bucket capacity approx. 7m³

1,000 mm RoRo width max. Inputsize: 1,400 mm

4 steps, 24 shafts

Output: 800 t / h

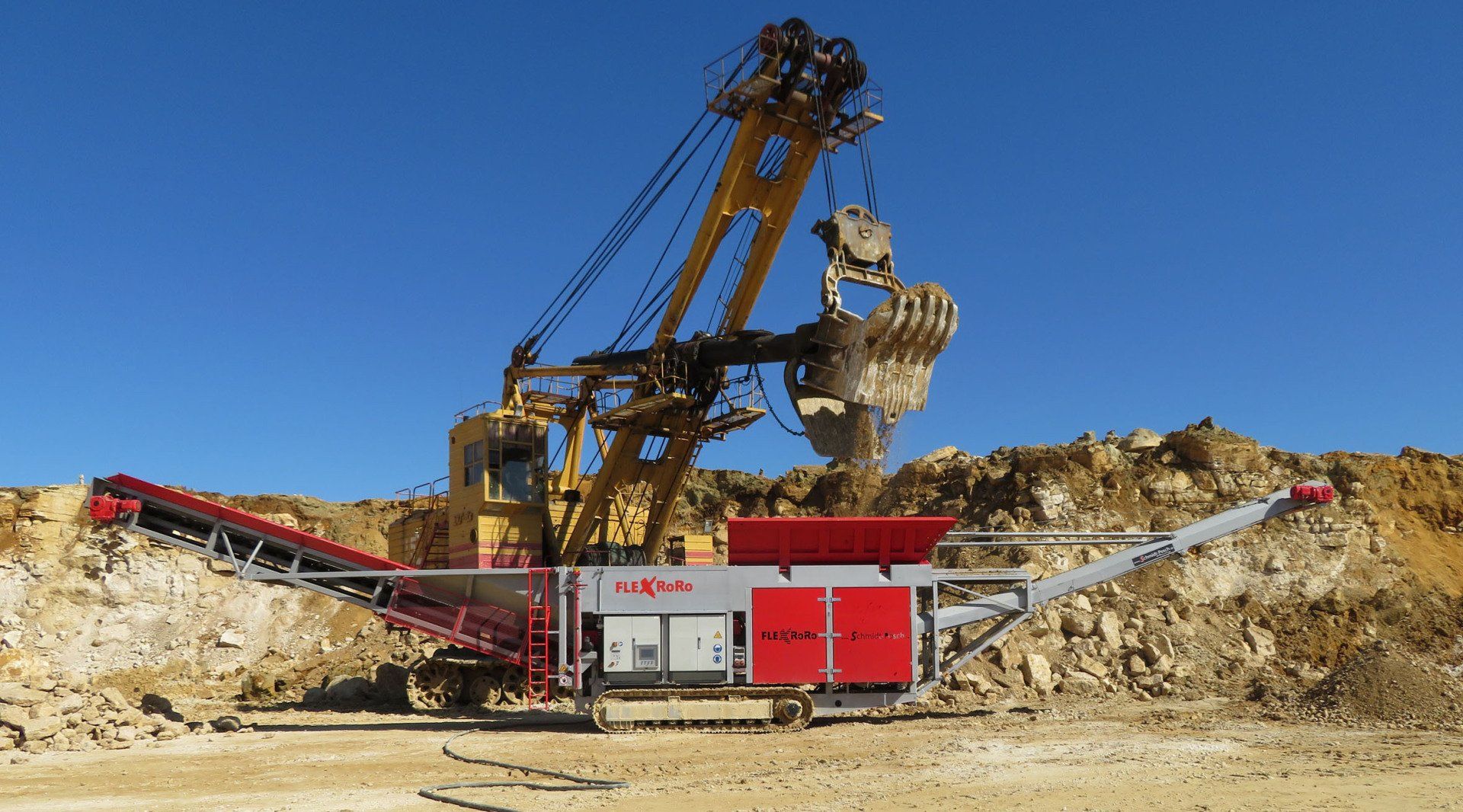

FlexRoRo 12-4-24 track mounted

1,200 mm Ro-Ro width max. Inputsize: 1,600 mm

4 steps, 24 shafts

Guaranteed output: 1,000 t / h

RoRo 8-4-24 - skid mounted

800 mm RoRo width max. Inputsize: 1,200 mm

4 steps, 24 shafts

Output: 600 t / h
